Excavator Diesel engine parts 4DQ5 Cylinder liner & Piston set 30607-50301
SPECIFIION:
MITSUBISHI
4DQ5
Appliion: FORK LIFT
No. CyI: 4
Diameter: 84.0MM |
| Piston | OEM No. | Compress Height | Total Length | Pin Size | Feature |
| 30617-57105 | 45.3 | 92.3 | 25x72.5 | |
| Piston Ring | OEM No. | Size1 | Size2 | | |
| 30615-51011 | 2.5+2.0+4.5 | | | |
| Cylinder Liner | OEM No. | Size | Flange | | |
| 30607-50301 | 84x87x162 | | | |
| Engine Bearing | OEM No. | Main Bearing | Con Rod Bearing | Bush | |
| | 30609-11011 | 30619-22102 | | |
| Engine Valve (IN) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| 30604-00102 | 40.0 | 8.0 | 118.0 | |
| Engine Valve (EX) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| 30604-01101 | 31.0 | 8.0 | 118.0 | |
| Valve Seat | OEM No. | | | | |
| | | | | |
| Valve Guide/Sub Parts | OEM No. | | | | |
| | | | | |
| Packaging | Carcon box, wooden box, or as customers' requirements |
| Shiping way | by express, by air,by sea |
| Principle | for small order, we can only accept 100% in asvance |
| substanitial order 50% advanced payment can be accepted |
| shipping at any port in China, depends on negotiation |
| Production time | after receiving the payment(usually takes 3 days),we prepare the goods for you |
| Delivery time | depends on the shipping way |
ADVANED PROCESSING TECHNOLOGY:
Our factory processing centers are adopted in the major process, with high processing precision and stable size; Inner circle honing use the texture standards for the advanced platform honing technology
PRODUCTION FACILITIES:
1. IF melting furnace system
2. Insulation casting furnace system
3. Automatic casting line
4. Shot blasting machine
5. Fully automatic cutting line
Automatic casting and processing
HIGH TECHNOLOGY GUARANTEED:
1. High wear and corrosion resistance
2. Remarkable sealing and oil-wipering performance
3. Excellent heat-conducting capacity
4. Support the piston in a reliable way
5. Splendid durability
INSPECTION FACILITIES:
1. Roughness meter,profile and roughness tester
2. Metallurgical microscope,direct-reading spectrometer
3. Universal testing machine,rockwell hardness testeor
DESTRIPTION:
A series of engine models for MITSUBISHI Cylinder liner as below, there are many models not include in this sheet, pls also feel free enquiry from us.
| MITSUBISHI | 4DQ5 | 30607-50301 | 4 | 83.0(SF) 84.0(FF) | 162 | |
| MITSUBISHI | 4D55/4D56 | MD050430 MD103648-9 | 4 | 90.1(SF) 91.1(FF) | 164.5 | |
| MITSUBISHI | 4D55(N) | 21131-42000 | 4 | 90.0(SF) | 167 | |
| MITSUBISHI | 4DR5/6DR5 | 31607-02202 31607-02101-2 | 4/6 | 91.0(SF) 92.0(FF) | 176 | |
| MITSUBISHI | S4S/S6S | | 4/6 | 93.0(SF) | 190 | |
| MITSUBISHI | 4M40T | | 4 | 94.0(SF) | 160 | |
| MITSUBISHI | 4M40 | | 4 | 95.0(FF) | 186 | |
| MITSUBISHI | 4DR7 | | 4 | 94.0(SF) 95.0(FF) | 186 | |
| MITSUBISHI | 4D30 | ME011513 | 4 | 99.0(SF) 100.0(FF) | 196.5 | |
| MITSUBISHI | 4D31 | ME011604-6 | 4 | 99.0(SF) 100.0(FF) | 191.5 | |
| MITSUBISHI | 4D31T | 21131-41200 | 4 | 99.0(SF) | 192 | |
| MITSUBISHI | S4K/S6K | 34307-00501 | 4/6 | 101.0(SF) 102.0(FF) | 195 | |
| MITSUBISHI | 4D32/4D34 | ME012900 ME013366-7 | 4 | 103.0(SF) 104.0(FF) | 197.5 | |
| MITSUBISHI | 4D32T | 21131-41300 | 4 | 103.0(SF) | 192 | |
| MITSUBISHI | 4D32(N) | ME031502-4 | 4 | 103.0(SF) 104.0(FF) | 192 | |
| MITSUBISHI | 4D33 | ME013333 | 4 | 107.0(SF) 108.0(FF) | 197 | |
| MITSUBISHI | 6D15-3AT | ME071090 | 6 | 113.0(FF) | 206 | PF |
| MITSUBISHI | 6D16 | ME071224 | 6 | 118.0(FF) | 204 | PF |
| MITSUBISHI | 6D16(new) | ME041105-5 | 6 | 118.0(FF) | 206 | PF |
COMPETITIVE ADVANTAGE:
1. Technique: advanced technology, strong R&D capability
2. Product: wide range of models meet your demand
3. Packing: meet your requirement
4. Delivery: fast delivery, because we have large stock
5. Service: most professional, efficient and reliable service

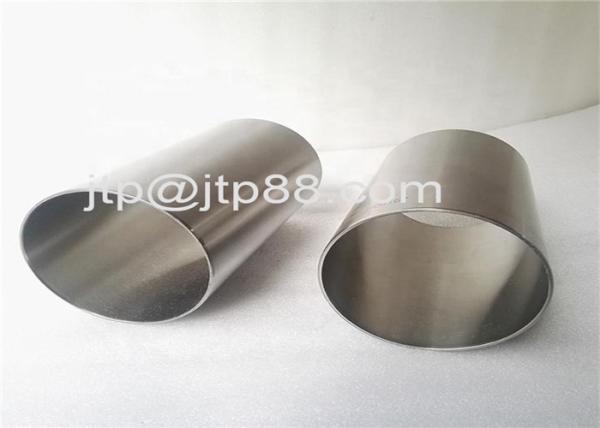

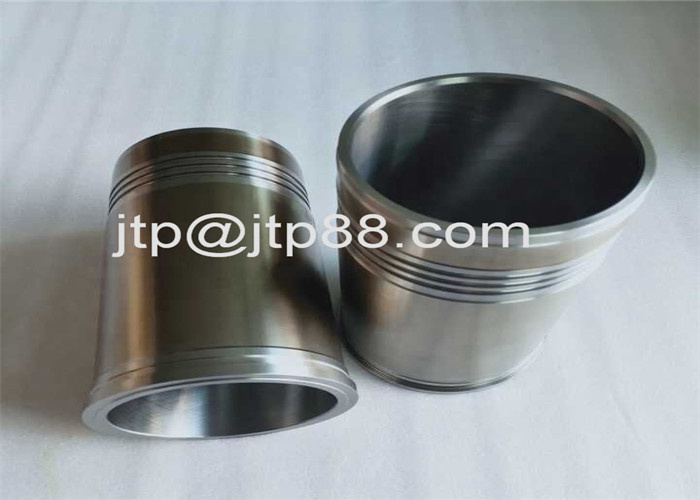

CYLINDER LINER PICTURE AS BELOW:
